HAVEN Hydraulic Press Brake with E21

Aug. 28, 2021

HAVEN Product: Hydraulic Press Brake with E21

HAVEN Hydraulic Press Brake with E21

1.Main features


The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the press brake.

The motors for backgauge and ram stroke are controlled by inverter, which can achieve high positioning accuracy of the backguage and ram by changing the frequency and voltage of motor.

Different punch and dies are optional according to customer’s requirements, such as Multi-V die, radius die, gooseneck die, etc. One set of complete standard punch and die will be included for free.

X axis(Backgauge) and Y axis(Ram stroke or cylinder stroke) can be programmed by E21 system controller, which can store up to 40 groups of programs.

Side and rear metal safety guard meets European safety standard.

Hydraulic overload can be protected by overflow valve, System pressure can be regulated by pressure switch easily.

Foot switch with emergency button can stop the machine immediately when accident happens.



HAVEN Product: Hydraulic Press Brake with E21

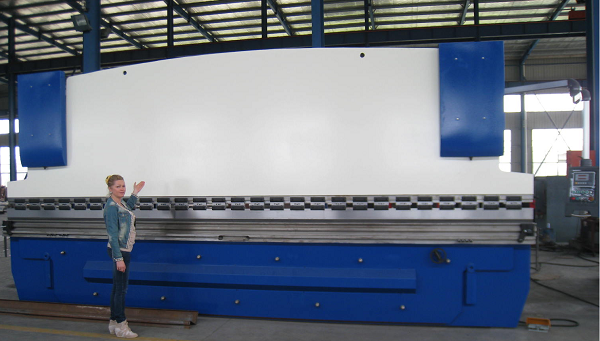

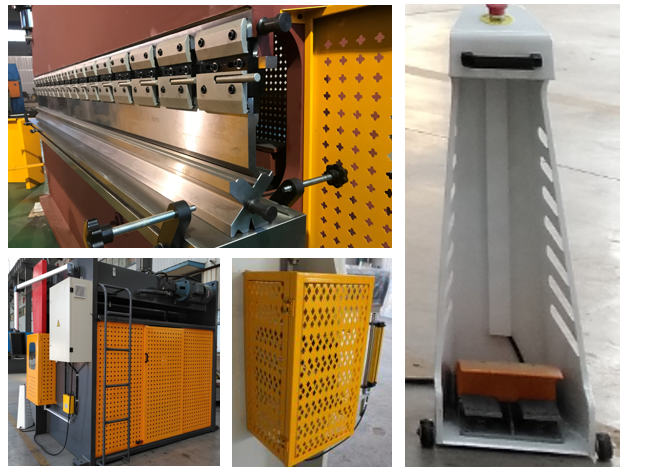

2.Safety standards and devices


EN 12622:2009+A1:2013

EN ISO 12100:2010

EN 60204-1:2006+A1:2009

South Korean KACON foot switch(inclusive)

Side and rear metal safe fences(inclusive)

Photoelectric protection (optional)

Hydraulic overload protection(inclusive)



HAVEN Product: Hydraulic Press Brake with E21

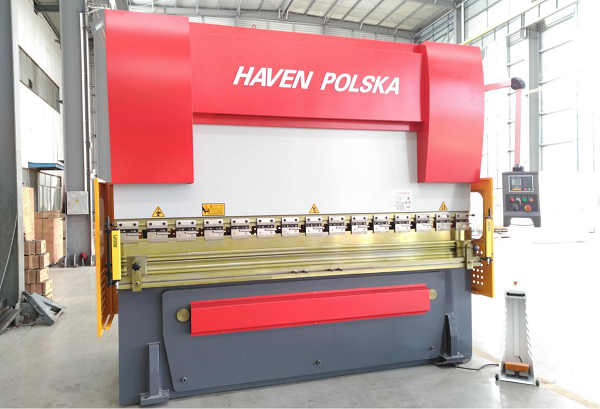

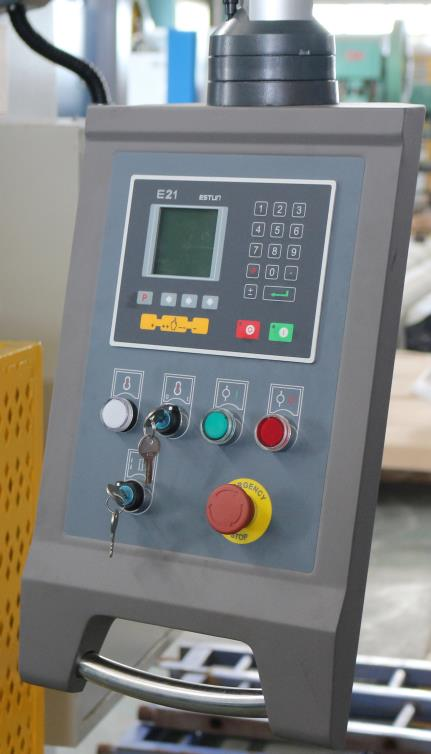

3. E21 NC controller


Backgauge and block control

Control AC motor or inverter

Intelligent and unilateral positioning

Work-piece counting function

Holding/decompression time setting

40 programs stored, 25 steps per program

One key back-up/restore of parameters

Unit for mm/inch

Language for Chinese/English





4.Technical parameters


Model Specification

63/

2500

63/

3200

80/

1600

80/

2000

80/

2500

80/

3200

100

/2500

100

/3200

125

/2500

125

/3200

160

/3200

200

/3200

Nominal pressure (KN)

630

630

800

800

800

800

1000

1000

1250

1250

1600

2000

Working width (mm)

2500

3200

1600

2000

2500

3200

2500

3200

2500

3200

3200

3200

Slide stroke (mm)

120

120

120

120

120

120

120

120

120

120

160

200

Throat Depth

250

250

320

320

320

320

320

320

320

320

320

320

Stroke adjustment (mm)

100

100

100

100

100

100

100

100

100

100

160

160

Motor power (k w)

5.5

5.5

5.5

5.5

5.5

5.5

7.5

7.5

7.5

7.5

11

22

Net weight ( t )

4

5.2

4.5

4.9

5.2

5.8

5.8

5.8

6

7

9

9.6




HAVEN Hydraulic Press Brake with E21

5.After sales service


Warranty period is 12 months after receiving the machine; any quick-wear part is available for free during guarantee period under proper operation, customers only need to pay for the freight of the replaced new parts.

Installation and training service is optional for customers, any client can ask for this service from HAVEN, they should assume the airfare and accommodation for our engineer during the journey. The salary for each engineer is USD100 per day.



For more details about our press break, please click here to contact us and give us your message.
