Fiber Laser Cuttinng Machine
Basic Info
*Cypcut control system speical for cutting tubes.
*Japanese YASKAWA servo motors system
*Hiwin linear square rail guide
*Taiwan YYC gears
*Swiss Raytools autofocus laser cutting head (TUBE TYPE)
*Taiwan TBI ball screw drive
*cutting diameter 15mm-220mm
*Japan SMC/Taiwan Airtac pneumatic parts
*French Schneider electronic parts
*Automatic lubrication system
*Smoke purify system
*Water cooling machine
Product Description
Detailed Information

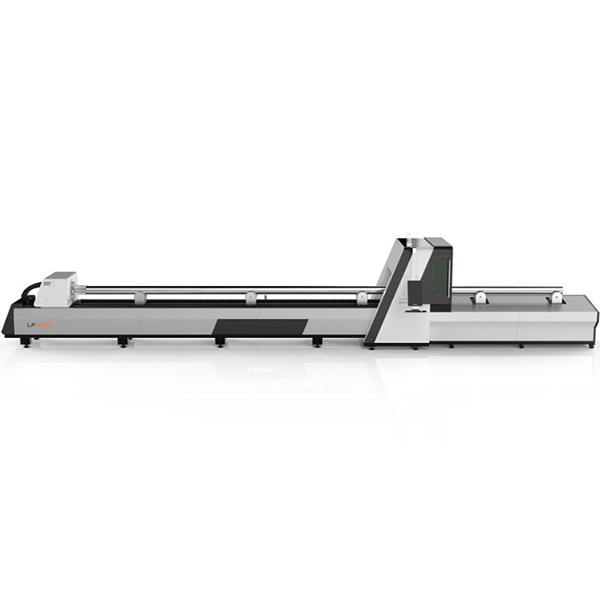

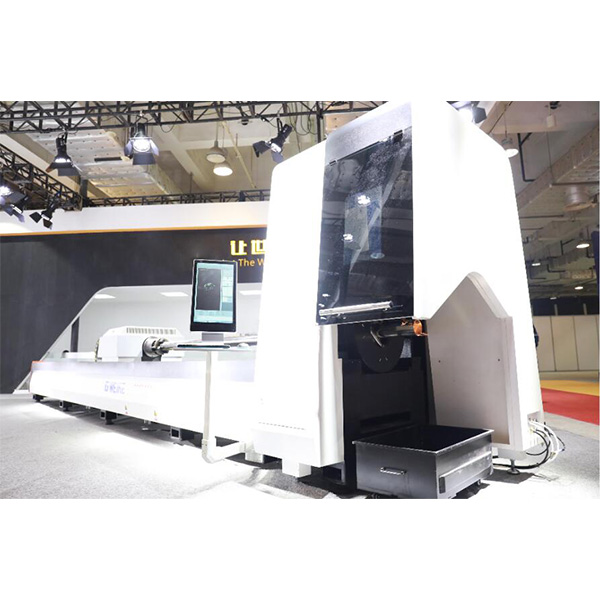

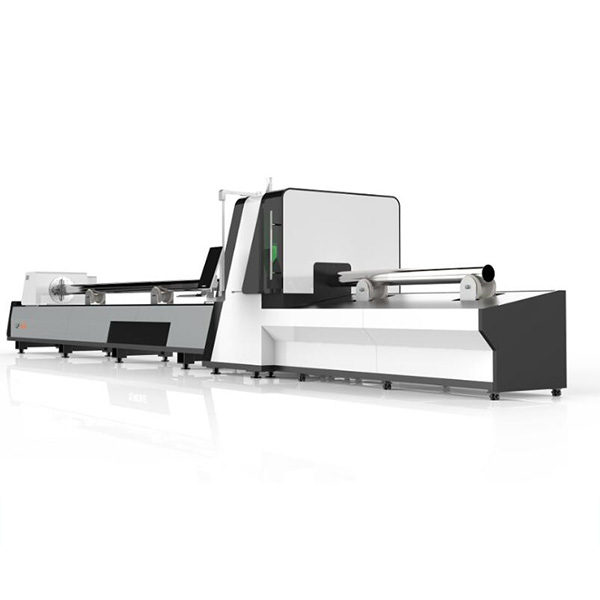

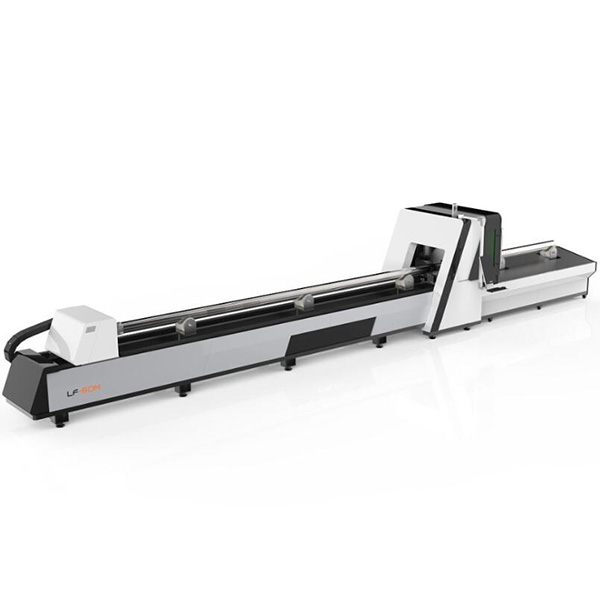

1. Machine pictures & Pneumatic Chuck

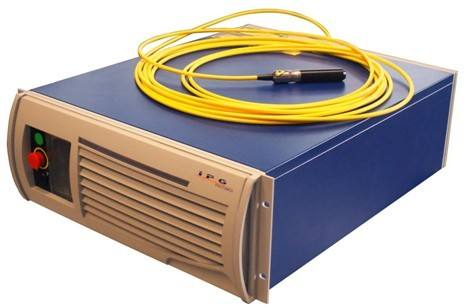

2. 3000W fiber generator

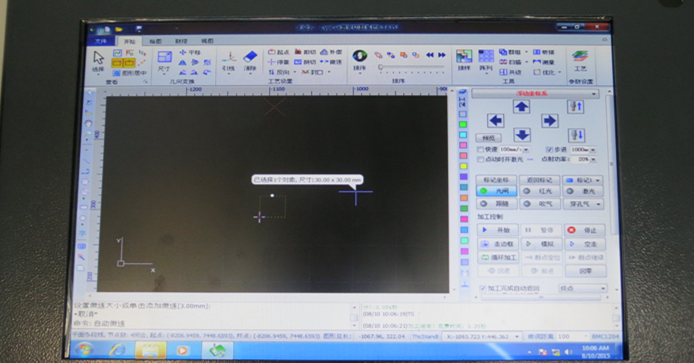

3. Cypcut control system

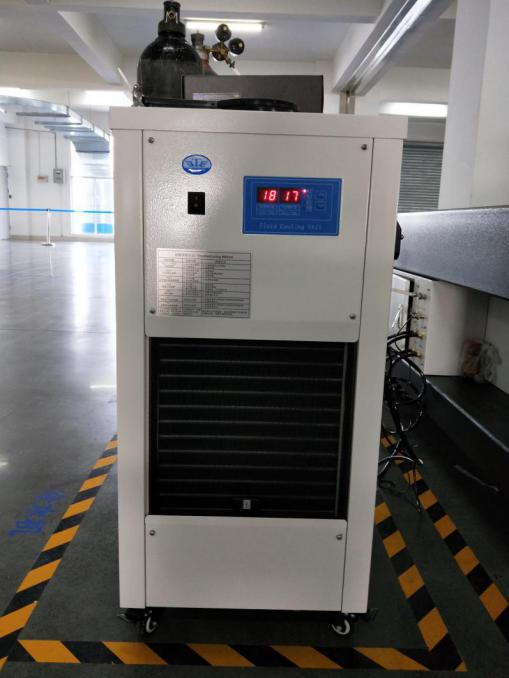

4. Industry water chiller: Tongfei

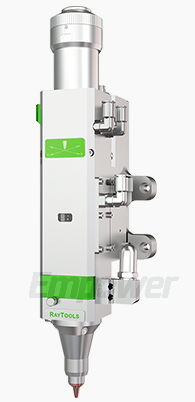

5. laser cutting head: Swiss raytools auto focus laser cutting head

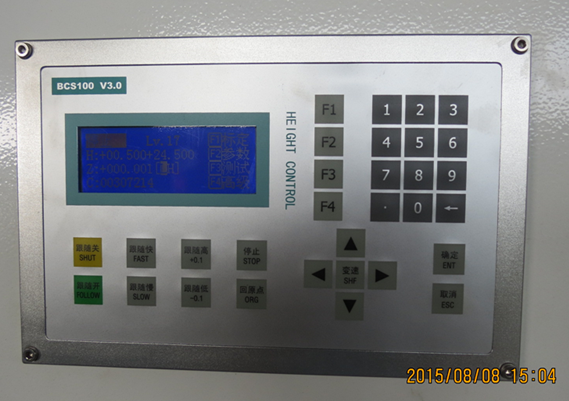

6. Automatic follow system
7. Japanese YASKAWA dual-servo driver ( Dual drivers for Y axis, faster and more powerful)

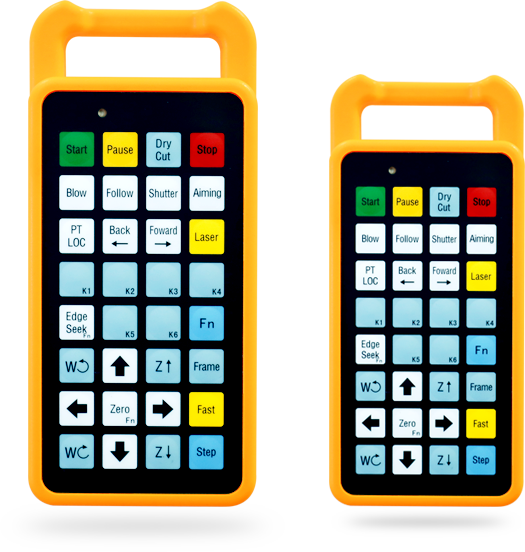

8. Wireless controller

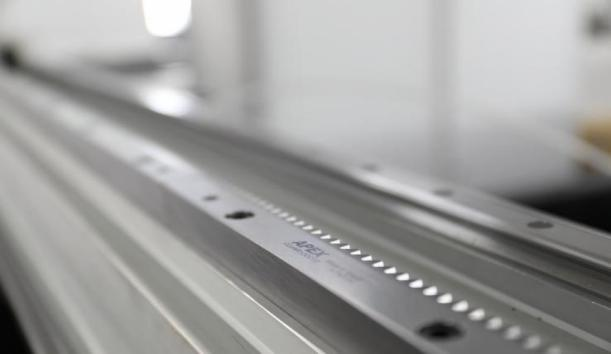

9. Taiwan YYC gears
10. X/Z axis using Taiwan TBI ball screw high precision,long life

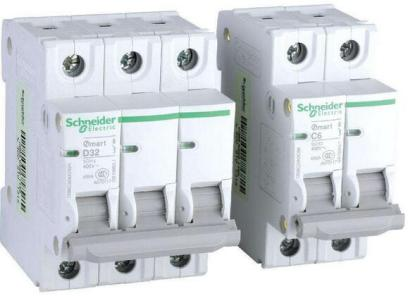

11.France Schneider electrical part
12. Japanese SMC Pneumatic Components

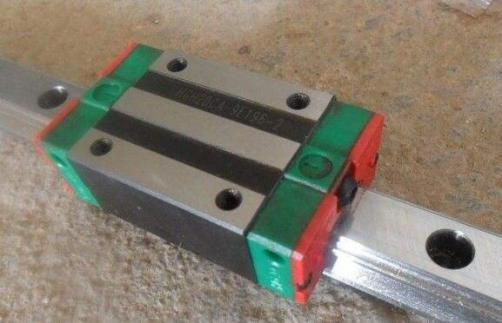

13. Taiwan Hiwin square guide rail
After-sales service
Technology support
We will send our engineer to the customers' place to help install, test the machine, and to train the customers' technique ,our engineer will stay at customers' place for 3-5 days, customers should pay the round trip air tickets/hotels/food fees for our engineer.
Or you can have a free training in our factory, we will provide free lodge and food.
Exhibition support
If our agents need our technical support at their show, our engineer will go to your show and work together, customers should pay the round-trip air tickets/hotels/food fees for our engineer.
24 hours online service
The customers' technicians can keep in touch with our engineer at any time, through wechat/whatsapp/mobile phone or email, our engineer will help to solve your problems as soon as possible.
Products Specification
PARAMETERS:
| Model | LF60M Metal Tube Laser Cutting Machine |
| Laser Type | IPG/Trumpf/Raycus/Reci |
| Laser Wavelength | 1070nm |
| Laser Maximum Power | 3300W |
| Max. Cutting thickness | Stainless steel 10 mm Carbon steel 20mm |
| Total Power Consumption | 34KW (50A) |
| Max.cutting speed | 0-120m/min (Depending on the material and thickness) |
| X, Y, Z Axis Orientation Precision | ≤±0.03mm/m |
| X, Y, Z Axis Repeat Precision | ≤±0.02mm /m |
| Cooling System | Water Cooling |
| Continous working time | 24 Hours |
| Environment temperature | 0-35°C |
| Power requirements | 380V /50Hz or 60Hz |
Applications: High precision Metal cutting
(Fine cutting for precision parts and various crafts, cutting surface is bright and clean, no need subsequent treatment)
