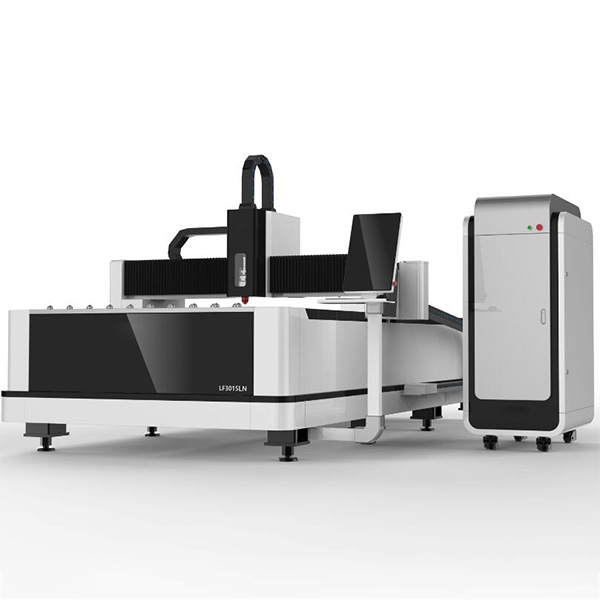

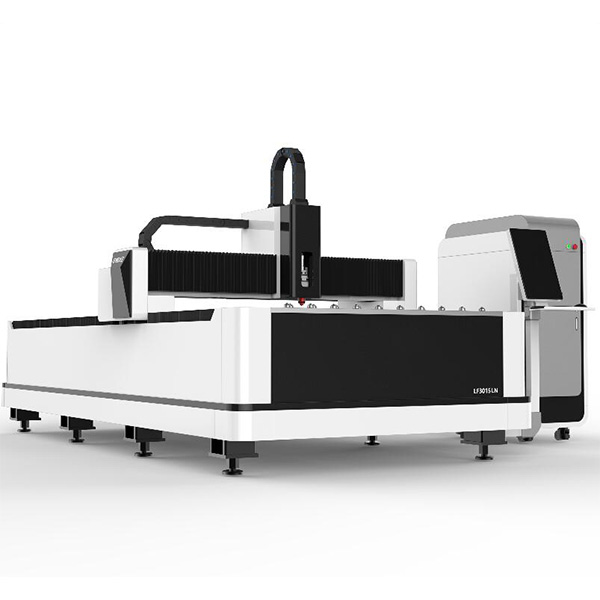

Flat Fiber Laser Cutting Machine LF3015LN

Flat Fiber Laser Cutting Machine LF3015LN

This is a very economical fiber laser cutting machine. It is a high-precision, high-speed entry-level sheet metal/medium cutting machine. This machine adopts an open type, single-unit design, simple structure, convenient installation, convenient use, convenient maintenance, low operating cost, and is suitable for cutting various thin plates such as sheet metal processing and cabinet production. It is the first choice ofmetal sheet cutting users.

Share:

Product Description

Flat Fiber Laser Cutting Machine LF3015LN


Configuration Details

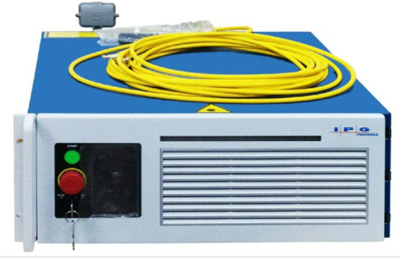

Fiber Laser Source

--Brand: IPG/Raycus

--100,000 hours life time, more stable, cost-efficient, free maintenance.

--The best brand in the World, quality has assurance.


Flat Fiber Laser Cutting Machine LF3015LN


Control System

* Brand: CYPCUT

* Details: Auto edge seeking function and flying cutting function.

* Supported Format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc...


The Beam of Machine

* Type: Aviation aluminum Beam

* Structure: Manufactured with aerospace standards and formed by 4300 tons Press extrusion molding. After aging treatment, its hardness can reach 6061 T6, which is the strongest hardness of all beams.

* Advantages: Good toughness, light weight, stronger corrosion resistance, anti-oxidation, low density to increase the moving speed of laser head.

* Comparison:

--Steel Gantry: 280kg;

--Cast aluminum Gantry: 180kg;

--Aviation aluminum Gantry: 138kg.

With a light weight, it will greatly increase the processing speed.

PS: We are the first manufacturer to adopt aviation aluminum gantry.


Machine Bed

* Type: The Segmented Rectangular Tube Welded Bed

* Structure advantage:

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

* For material :

Through 600℃ heat treatment to keep stronger and more solid.

* Feature:

High strength, stability, tensile strength, ensuring 20 years of use without distortion;

Thickness of rectangular pipe wall is 10mm and weights 3500 kg.


Laser Head:

* Brand: Swiss Raytools auto-focus laser head

* Advantages:

--High Presicion: Without manuel, zero fault.

--High Effectiveness: Without manuel,Save time

--High Safty: Anti-collision design, height adjustment high sensitivity

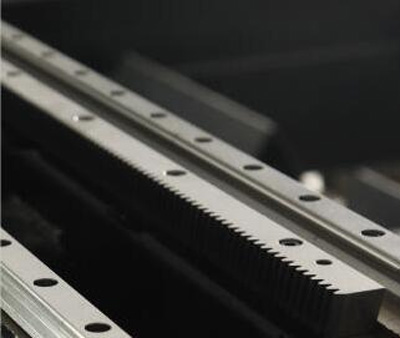

Gear and Rack - Taiwan YYC

* High precision, long life, can provide rigorous support for quenching helical gears and grinding helical gears, so that the load drive structure is compact, can effectively reduce the driving torque.


Flat Fiber Laser Cutting Machine LF3015LN

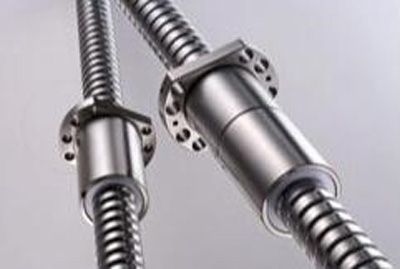

Transmission for Z axis

* Brand: Taiwan TBI Ball Screw

* Details: High efficiency, pre-tightening and high rigidity, long life,  high-speed feed.


Flat Fiber Laser Cutting Machine LF3015LN

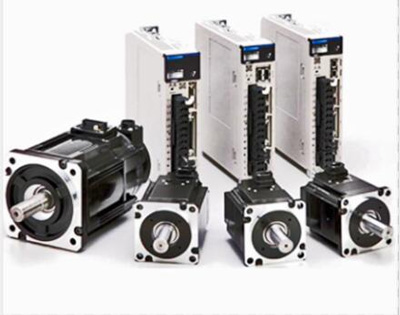

Servo Motor

* Brand: Japan YASKAWA & PANASONIC

* Details:

--X axis: one set 850W Japanese YASKAWA servo motor and driver.

--Y axis: Two set 850W Japanese YASKAWA servo motor and driver.

--Z axis: one set 400W Japan PANASONIC servo motor and driver.

Higher power of motor and drive makes higher moving speed for laser head.


Flat Fiber Laser Cutting Machine LF3015LN

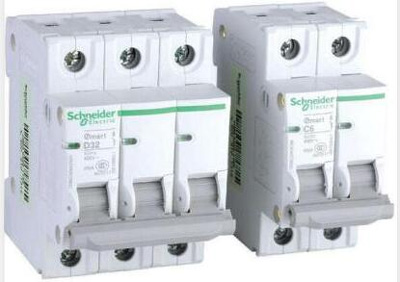

Electronic Component

* Brand: France SCHNEIDER

* Details:

--Circuit protection against short-circuit currents,Circuit protection against overload currents,Breaking and industrial disconnection as per standards IEC/EN 60947-2.

--Overvoltage resistance, High performance limitation to fast closing independent of the speed of actuation of the toggle.


Flat Fiber Laser Cutting Machine LF3015LN

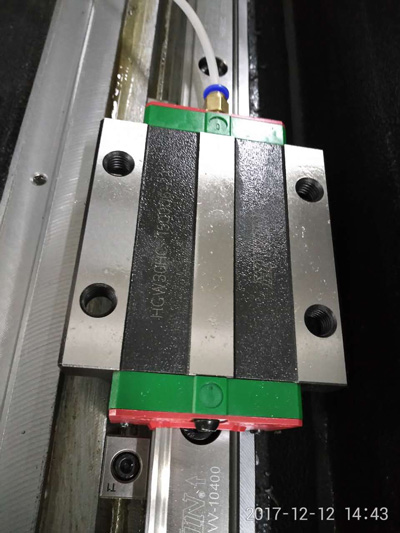

Square Rail

* Brand: Taiwan HIWIN

* Advantage: Low noise, wear-resistant, smooth to keep fast Moving speed of laser head.

*Details: 35mm width and 165 four pieces stock on every table to decrease the pressure of rail.


Flat Fiber Laser Cutting Machine LF3015LN

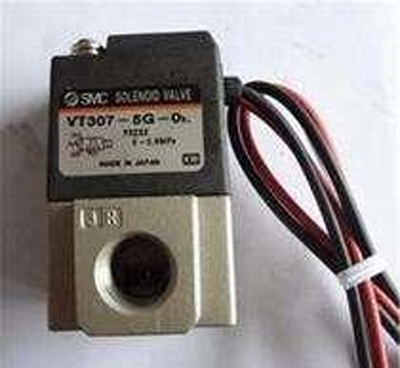

Pneumatic Components

* Brand: Japan SMC

* Details:

--Stepless control of air pressure proportional to an electrical signal.

--Serial communications specifications.

--Compact/lightweight (Integrated communication parts).


Flat Fiber Laser Cutting Machine LF3015LN

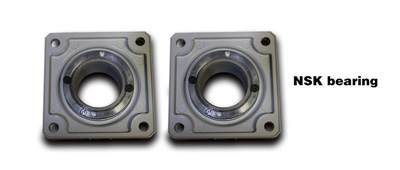

Bearing

* Brand: Japan NSK

* Details:

--These bearing housings have square flange which can be easily attached to a machine with four bolts.

--With its simple mounting face, this bearing unit is widely used.


Flat Fiber Laser Cutting Machine LF3015LN

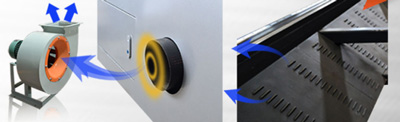

Automatic Exhaust System

* Details:

--Remove the smoke and dust caused by metal cutting .

--The exhaust frequency and quantity can be set by adjusting the parameters on computer.


Flat Fiber Laser Cutting Machine LF3015LN

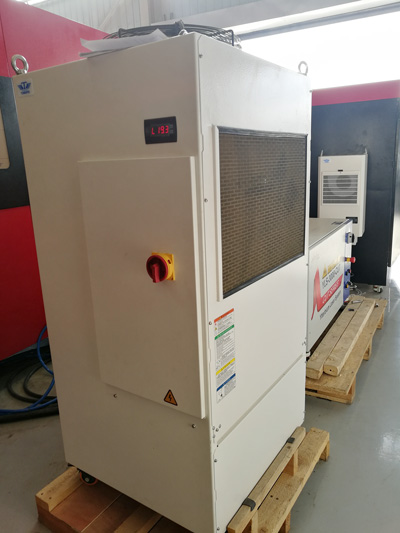

Water Cooling System

* Brand: 500w TF Chiller

* Details: Dual cooling function,Hot water for laser head and cool water for laser source to keep them around a certain temperature and guarantee their normally work.

* Environmentally coal added, more environmentally and friendly for the workers.


Flat Fiber Laser Cutting Machine LF3015LN

Products Specification

Technical Parameters

ModelLF3015LN
Total Weight3500kg

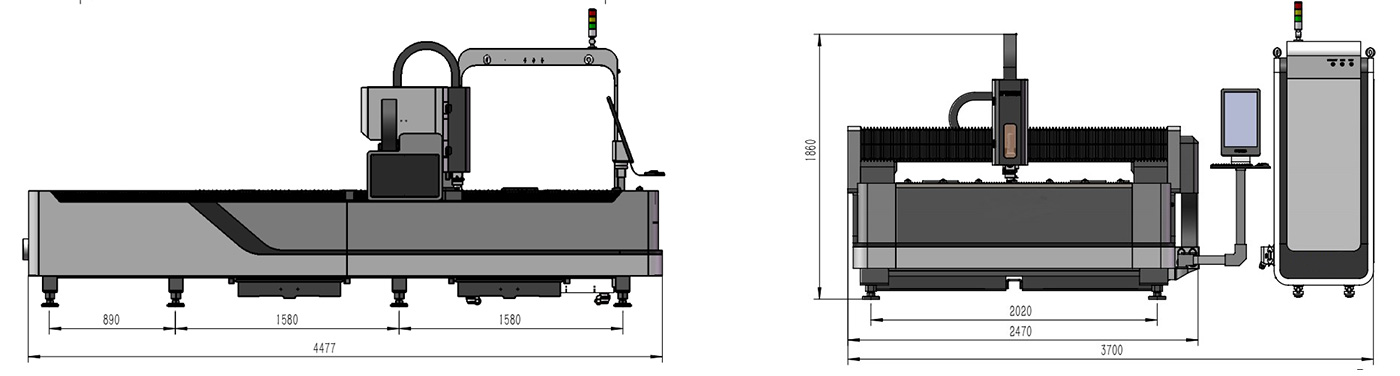

Dimension4477*3700*1860 mm
Laser power available1000W-2000W
Working area for metal sheet3000*1500mm
Y-axis stroke3000mm
X-axis stroke1500mm
Z-axis stroke120mm
X/Y axis position accuracy±0.03mm
X/Y axis reposition accuracy±0.02mm
Max. Moving speed140m/min
Maximum acceleration1.0G
Max. Working capacity of sheet table1000kg
Specified voltage and frequency380V/50Hz/60Hz/60A
Continuous working time24h


Machine Cutting Parameters


1000W1500W2000W3000W
MaterialThicknessGasCutting Speed(m/min)Cutting Speed(m/min)Cutting Speed(m/min)Cutting Speed(m/min)
Carbon Steel1O215--2218--2525--3330--40
25.0--6.67.0--107.0--105.5--7.0
32.5--3.854.0--5.54.0--5.53.6--5.0
42.0--3.32.5--3.52.8--4.03.0--4.5
51.5--2.02.0--2.82.2--3.02.6--3.5
61.4--1.652.0--2.422.3--2.862.3--3.2
80.9--1.321.2--1.651.8--2.21.8--2.6
100.6--1.01.0--1.321.2--1.651.2--2.0
120.5--0.80.7--1.01.0--1.321.0--1.6
14
0.6--0.80.7--0.80.9--1.4
16

0.6-0.70.7--1.0
18

0.4--0.60.6--0.8
20



0.5--0.8
22



0.3--0.7
Stainless Steel1N218--2520--2727--3330--35
25--7.518--2218--2213--21
32.0--3.14.5--5.54.0--6.56.0--10
41.2--1.32.0--2.53.0--4.24.0--6.0
50.6--0.71.5--2.01.8-2.53.0--5.0
60.2--0.450.7--1.01.2-1.82.0--4.0
8
0.2--0.450.7-1.01.5--2.0
10


0.6--0.8
12


0.4--0.6
Aluminum1N210--13.215--27.525--3125--38
22.8--3.67.0--8.610--13.210--18
30.7--1.55.0--6.54.0--6.06.5--8.0
4
1.0--1.652.0--3.03.5--5.0
5
0.7--1.01.2--1.82.5--3.5
6
0.4--0.70.7--1.01.5--2.5
8

0.6--0.80.7--1.0


Gas Requirement to User

Gas TypePressurePurity
O21MPA99.9%
N22.5MPA99.9%
Remark: The purity of gas can be below 99.9% above 95%. The higher purity is, the better cutting quality will be.


Working Temperature

The Best Working Temperature0-35℃
 ≤0℃:Pour ethyl alcohol into the water chiller not more than 1/4 of the chiller’s volume

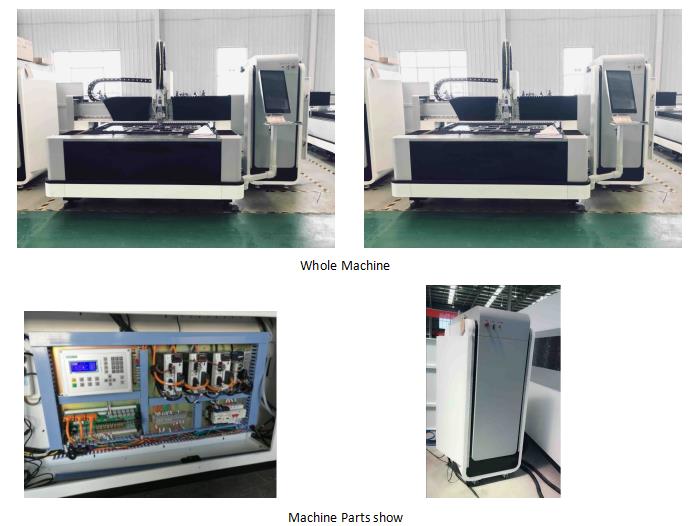

Machine in Factory Show
