Jan. 11, 2024

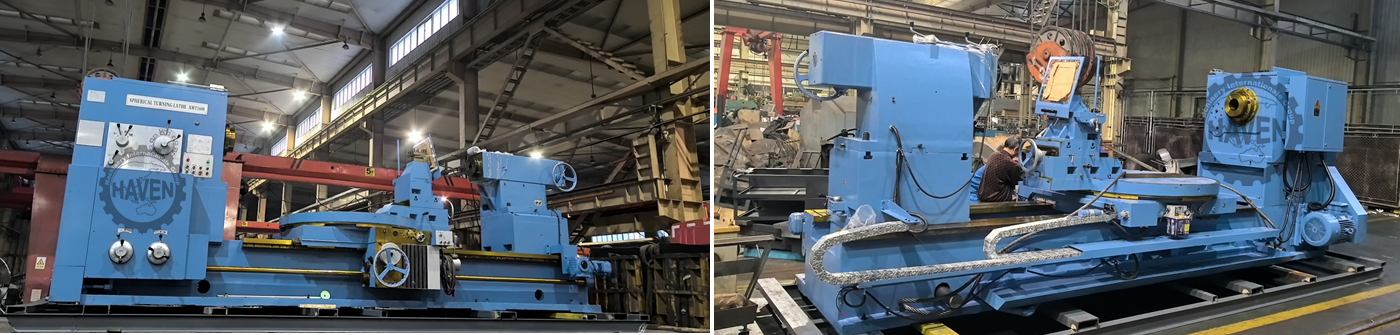

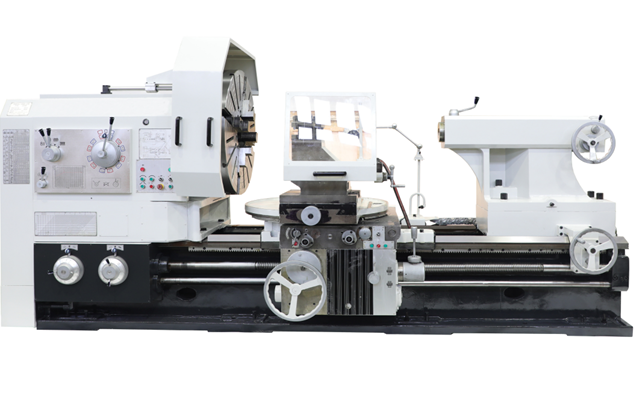

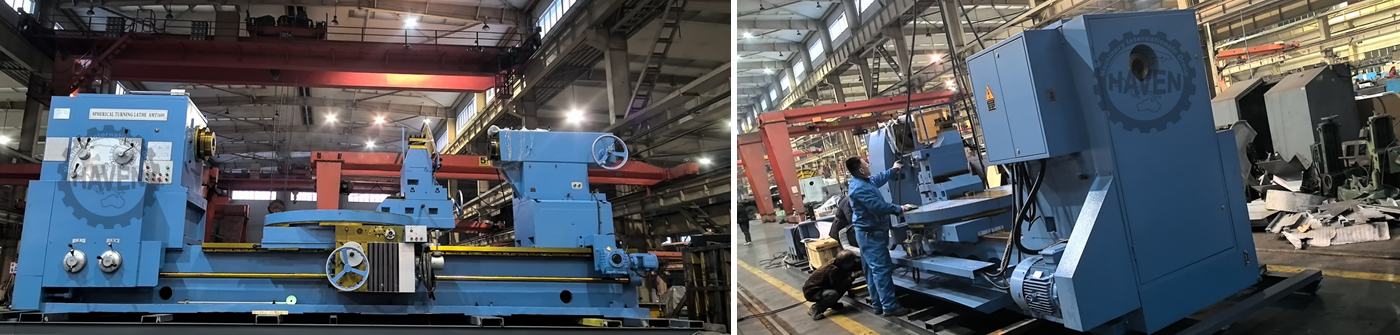

Spherical Turning Lathe MODEL: C6595
customized Spherical Turning Lathe is used for cutting Circular surface manual
Main parameter :
MAIN SPECIFICATIONS | UNIT | C6595 |
Max. turning dia. of external spherical surface | mm | 900 |
Min. turning dia. of external spherical surface | mm | 260 |
Diameter of spindle thru hole | mm | 130 |
Taper hole of spindle | mm | 140 |
Number of spindle speeds | 21 step （reverse 12 step） | |
Range of spindle speeds | r/min | 3.15-315 |
Spindle's reverse turning speed | r/min | 3.5-291 |
Swivel angle of toolpost | ° | ± 9 0 |
Cross Section of Tool Shank | mm | 30x30 |
Chuck Size | mm | 1000 |
Main motor power | KW | 22 |
Net weight | T | 12 |
Gross weight | T | 13.5 |
Machine overall dimen: length | mm | 4700 |
Width | mm | 2500 |
Height | mm | 2000 |
Package size | M | 5.2*2.2*2.55 |
Standard accessories : Manual 1000MM 4-Jaw Chuck ; Coolant system; V belt; work light; Manual tailstock(Installed);Foundation bolt; Chuck wrench;Turret indexing wrench;Wrench of gyration disk ;Wrench of square turret; Double-head wrench ;Hex Head Socket Wrench;Screw driver; Grease Gun; Clutch Disk; Snap ring pliers; documents. | ||
