Haven Unveils High-Precision MC1 Series Single Point Press for Metal Stamping

Jul. 02, 2025


Engineered for Precision and Rigidity

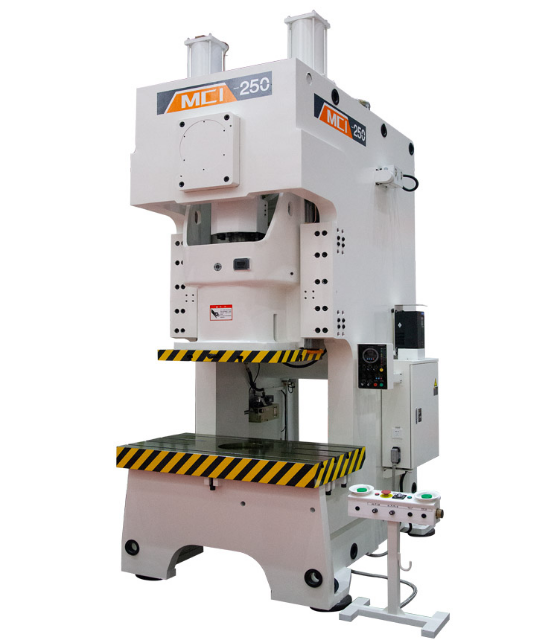

The MC1 series is built upon a high-rigidity steel-welded frame that resists deformation during high-load stamping operations. This robust construction is essential for maintaining accuracy and minimizing vibration, particularly during continuous production cycles. The machine’s fixed strokes per minute (SPM) setup ensures consistent motion and reliable repeatability, which is vital for precision-driven industries.

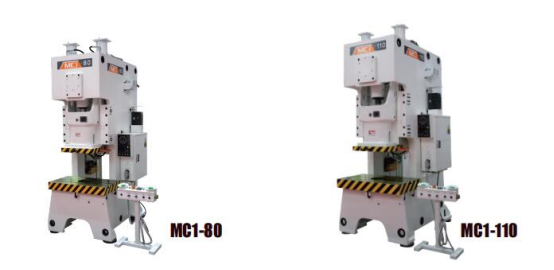

To enhance stability and alignment, the MC1 press utilizes a six-face rectangular lengthened guide structure—a feature commonly reserved for high-end press machines. Models MC1-315 and MC1-400 go a step further with an eight-face lengthened guide, significantly increasing guiding accuracy for heavy-duty applications.


Advanced Drive and Safety Systems

At the heart of the MC1 series is a combined dry friction clutch, providing dependable mechanical engagement without sacrificing responsiveness. Users will appreciate the machine’s hydraulic overload protector, which is engineered to safeguard internal components and reduce downtime in the event of excessive loads.

Different models in the series offer flexible control options to meet diverse user needs. The MC1-25 model features manual adjustment with numeric display, while MC1-45 and larger models are equipped with electric adjustment and digital displays for enhanced control and ease of operation.

The system is supported by imported dual solenoid valves, ensuring precise and safe control of the clutch and brake mechanism. An electric forced grease lubrication system enhances wear resistance and operational lifespan, while the balance cylinder uses manual oil lubrication to support synchronized slide motion.

Integrated Automation and Control

Modern manufacturing requires intuitive and centralized control, and the MC1 series delivers on that front. Each unit is equipped with an integrated control panel, which includes electronic cam systems and a user-friendly touchscreen interface. The machine operates via a programmable logic controller (PLC) from internationally recognized brands, guaranteeing high reliability and system flexibility.

Additional electrical components such as contactors and buttons also come from global brands, reinforcing Haven's commitment to quality and long-term value.


Flexible Configuration and Smart Options

One of the standout features of the MC1 series is its wide range of optional accessories, allowing users to tailor the press to their specific application needs. Optional configurations include:

  • Wet clutch for smoother engagement and longer life

  • Air cushion system for die protection and counterbalance

  • Light curtain for enhanced operator safety

  • Inverter motor for energy-saving variable speed control

  • Slide knockout device for fast part ejection

  • Bolster LR housing for convenient die mounting

  • Automation-ready integration to connect with feeders, robots, and part transfer systems

Whether you're running short production cycles or high-volume stamping lines, the Haven MC1 Series is engineered to scale with your operation.


Ideal Applications Across Industries

The MC1 open front press is ideally suited for metal stamping, blanking, forming, and deep-drawing applications. It is already gaining attention in industries such as:

  • Automotive components

  • Appliance housings

  • Electrical enclosures

  • Architectural fittings

  • Packaging hardware

For manufacturers looking to enhance their press line with a reliable and precise machine, the MC1 series offers a smart and cost-effective solution.


A Commitment to Innovation and Service

As part of Haven’s commitment to providing exceptional customer service, the MC1 press is backed by a dedicated technical support team and a comprehensive parts supply network. Haven continues to uphold its mission to deliver innovative, user-friendly, and performance-oriented machinery to customers worldwide.

To learn more about Haven’s complete lineup of press machines, fiber laser cutting systems, CNC machining centers, and more, visit the official Haven website.

For consultation, custom solutions, or to request a quote, feel free to contact Haven today. Our team is ready to support your production needs with precision engineering and reliable after-sales service.


About Haven

Haven is a trusted global manufacturer of metalworking machinery, specializing in press machines, laser cutting systems, lathes, machining centers, and sheet metal processing solutions. With decades of industry experience and a strong focus on innovation, Haven supports manufacturers around the world with equipment designed for performance, safety, and long-term productivity.
