Lathe Machine for Nigeria Client

These machines are customized for the Nigeria client.

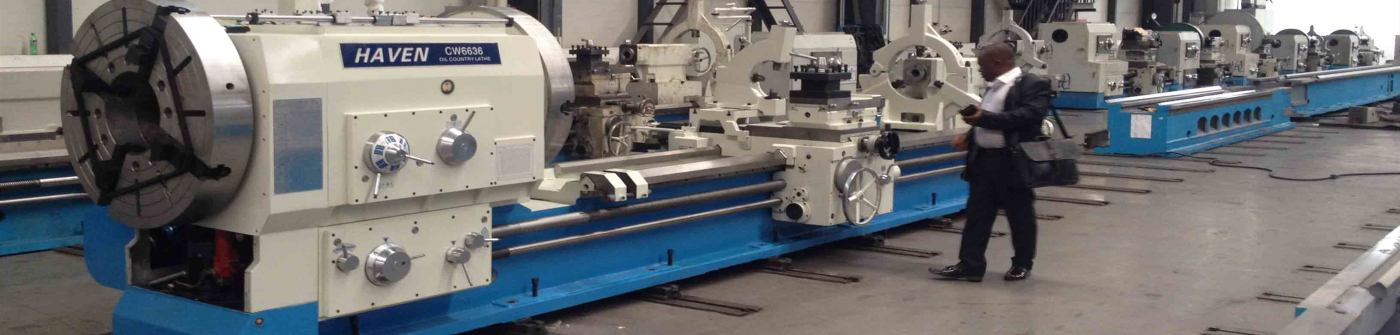

The friendly client go to our factory to inspect the lathe machine carefully.Welcome to our factory to check our machine details.

the client choiced model number is CW6636,for you reference,here we list some information about this model number,please check,

TECHNILICAL SPECIFICATION FOR CW6636×3000mm LATHE

Main specification

Max. swing over bed                                         1000 mm

Max. swing over carriage                                      640 mm

Distance between two centers                                  3000 mm

Width of bed                                                755 mm

Diameter of spindle inner hole                                  360 mm

Min. clamped diameter of chuck                                240 mm

Range of spindle speed                       6.3 to 315 r.p.m. with 18 steps

Main motor power                                             22 kW

Kind of metric thread and pitch range         56 kinds         1 to 120 mm

Kind of Whitworth thread and range         37 kinds    30 to 1.125 teeth/in.

Kind of modular thread and range            46 kinds        0.5 to 60 mm

Kind of radial thread and range              46 kinds        0.5 to 60 D.P.

With 4 way toolpost

Tool section ( H×W )                                     45×45 mm

Max. travel of tool post                                       300 mm

Max. travel of cross slide                                      695 mm

Rapid traverse of tool post          longitudinal            3740 mm/min

                               cross                  1870 mm/min

                               up tool post             935 mm/min

Diameter of tailstock sleeve                                   160 mm

Travel of tailstock sleeve                                     300 mm

Taper for taper hole of tailstock sleeve                      Metric No. 80

Machining length of taper scale 300 mm                Taper turning, ±1:4

Net dimension of machine                           6100×2045×1915mm

Net weight of machine                                        9500kg

(not including weight of chuck and steady and any accessories)

Automatic lubrication for gearbox, but surface of guideways manully

Overload safety device
