HAVEN Universal Lathe and Gap-bed Lathe

Oct. 14, 2021

Here we introduce some information of HAVEN universal lathe and gap-bed lathe to help you know our products.

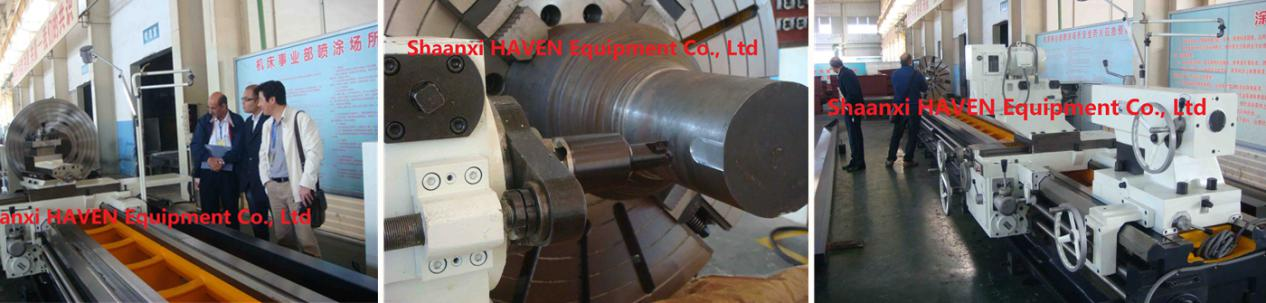

HAVEN Universal Lathe and Gap-bed Lathe


Main features:

The lathe can perform to turn end -faces., cylindrical surfaces and internal holes of various parts as well as metric ,inch, module and pitch threads. The top slides may be operated individually by power for cutting shot taper, long taper can be turned automatically through the compound movement combining longitudinal feed with the top slide feed, moreover, the machines may be used for drilling, boring and trepanning .

They are characteristic of power, high spindle speed, high rigidity. The various ferrous and won-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools.





    SPECIFICATION



              Models

CW612100D

CW612125D

CW612140D

CW612160D

CAPACITY

Swing dia. over bed

1000

1250

1400

1600

Swing dia. over cross slide

630

880

1030

1230

Swing dia. on gap

1450

1700

1850

2050

Width of bed

755mm

Max. workpiece length

1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 12000 14000

SPINDLE

Spindle nose

A15

Spindle bore diameter

130mm

Taper of spindle bore

140# Metric      No. 140

Range of spindle speed

3.15-315r/min    21 kinds

FEEDS

Longitudinal feeds range

0.1-12mm/r      56 kinds

Transversal feed range

0.05-6mm/r      56kinds

Metric tread range

1-120mm        44kinds

Inch tread range

3/8-28teeth/inch  31kinds

Modular thread range

0.5—60mm      45kinds

Pitch thread range

1-56teeth/inch   25 kinds

TAILSTOCK

Tailstock center taper

Morse No.6

tailstock center motion

300mm

Tailstock center diameter

140mm

MOTORS

Main motor power

22kw

rapid motor power

1.5kw

Cool pump power

0.125kw



STANDARD ACCESSORIES


1. Four-jaw chuck φ1000                1set

4. center      2 pcs

7. Foundation screws  1set

2. steady support 70-480mm

For 2m 1 set;  For 12m 2sets; For 14m  3 sets

5 center bush   1pc

8. work lamp

3. following support (for more than 2m)    1 set

6. tools        1set

9. Coolant system


SPECIAL ACCESSORIES


1.   (φ400-φ700)   Steady support

4.  Chasing dial device

2.   φ1250, φ1400  4-jaw chuck

5.  Inch leadscrew

3.   Metric dial device




If you want to buy one, welcome to send us a message and we'd love to serve you.
