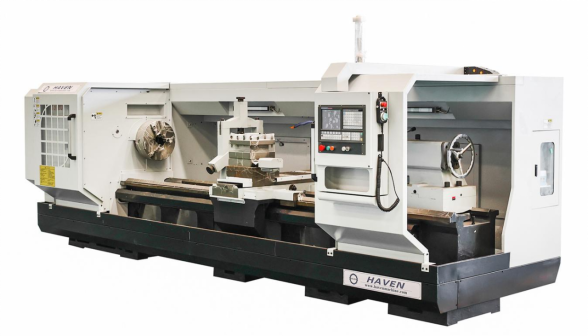

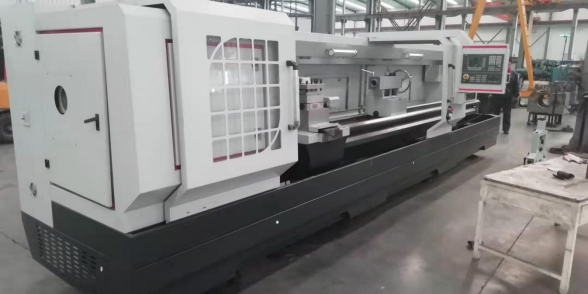

The above machine photos for client refer the Appearance and color
The machine tool adopts a docking flat bed, which is easy to operate and adjust, conducive to chip removal, and conducive to workpiece loading and unloading. The longitudinal and transverse guide rails are medium frequency quenched guide rails, which improve the response speed of the machine tool and extend its service life. The spindle transmission system of the machine tool is transmitted to the spindle by a servo motor through a belt and the headbox gear. The X-axis transmission is all directly connected, which improves the stability, reliability, and response speed of the machine tool; The Z-axis adopts a reducer and precision racks, which increases the strength of the machine tool. The machine tool is equipped with a domestically produced brand four station vertical electric tool holder, which has the advantages of high accuracy, smooth rotation, and simple action, and is equipped with appropriate attachments. Therefore, the machine tool has a wide process adaptability and shortens the auxiliary time in the processing process.
| Item | Unit | Parameter | |
| Processing | Max swing diameter over bed | mm | Φ1300 |
| Swing over cross slide | mm | Φ850 | |
| Max workpiece diameter (short disc) | mm | Φ1300 | |
| Distance between centers | mm | 8000 | |
| Guideway width | mm | 1100 | |
| Spindle | Spindle head form | Extended spindle head | |
| Spindle bore | mm | Φ100 | |
| main spindle front bearing | mm | 200 | |
| Spindle speed range | r/min | 10-50rpm,30-80rpm 50-200rpm,80-320rpm | |
| Spindle speed steps | HYD. 4 steps | ||
| Four jaw single acting chuck diameter | mm | Φ1250 | |
| Main motor power | kW | 30 | |
| Tailstock (Rotating tailstock + electric mobility) | Tailstock quill diameter | mm | Φ260 |
| Tailstock quill travel | mm | 300 | |
| Tailstock quill taper | metric 80 | ||
| Feed | Feed motor(X/Z) | Nm | 22/30 |
| Fast movement speed(X/Z) | m/min | X∶4/ Z∶4 | |
| Travel（X/Z） | mm | 700/7750 | |
| Min setting unit | 0.001mm | ||
| Tool post | Type | Vertical four-station | |
| Size | mm | 380x380 | |
| Capacity | pcs | 4 | |
| sectional dimension | mm | 50×50 | |
| lubrication | Lubrication form | Automatic intermittent lubrication | |
| Lubrication pump capacity | L | 4 | |
| Accuracy | Cylindrical dimensional accuracy | IT7 | |
| (Standard specimen) | The surface roughness Ra value of the outer circle | μm | 3.2 |
| roundness | mm | ≤0.01 | |
| Cylindrical machining diameter consistency | mm | 0.04/300 | |
| Face flatness | mm /mm | 0.025/φ300 | |
| Machine weight and appearance | Main appearance color | RAL 7035/Grey white | |
| Machine base | RAL 7021/dark grey | ||
| Machine Max. load capacity | T | 10 | |
| Machine weight | kg | About 26100 | |
| Overall dimensions (L × W × H) | mm | About 11500×2550×2400 | |
| Standard accessories: | |
4-jaw chuck
| Steady rest
|
Follow rest
| Lubrication system
|
Coolant system
| Electric NC turret 4 position
|
Work lamp
| Tool box
|
| NO. | Item name | Specification | Quantity | Manufacturer | |
| 1 | Controller | Siemens 808D | 1 | Siemens | |
| 2 | Servo feeding motor | 22/30N·m | Each is one | ||
| 3 | encoder | 1 | China brand | ||
| 4 | Servo motor | 30KW | 1 | CTB | |
| 5 | NN3034K、NF636M、NN3040K、234440 | Each is one set | WZW | ||
| Mainshaft bearing | |||||
| 6 | Ballscrew | X | GD5008 | 1 | China brand |
| 7 | gear rack | M:5 | YYC(Distribution reducer) | ||
| 8 | Vertical four-station tool rest | 380x380mm | 1 | YTUM | |
| 9 | 4-jaw Independent Chuck | Φ1250mm | 1 | Wafangdian Longxu | |
| 10 | cooling pump | 250W | 1 | China brand | |
| 11 | automatic lubrication installation | 4L | 1 | Nanjing Jiutai | |
| 12 | electrical element | Mainly | 1 set | CHINT | |
| 13 | centre rest | Φ400-700 | 1 set | China brand | |
| Lubrication | 1/Set | Hurun electric lubricating oil pump, |
| Instruction Manual | English | Instruction manual (mechanical, electrical), Packing list |
| No. | Name | Qty |
| 1 | 14-17mm spanner | 1 |
| 2 | 4mm inner hexagon spanner | 1 |
| 3 | 6 mm inner hexagon spanner | 1 |
| 4 | 8 mm inner hexagon spanner | 1 |
| 5 | Spanner for turret | 1 |
| 6 | Spanner for chuck | 1 |
| 7 | Instruction Manual | 1 |
