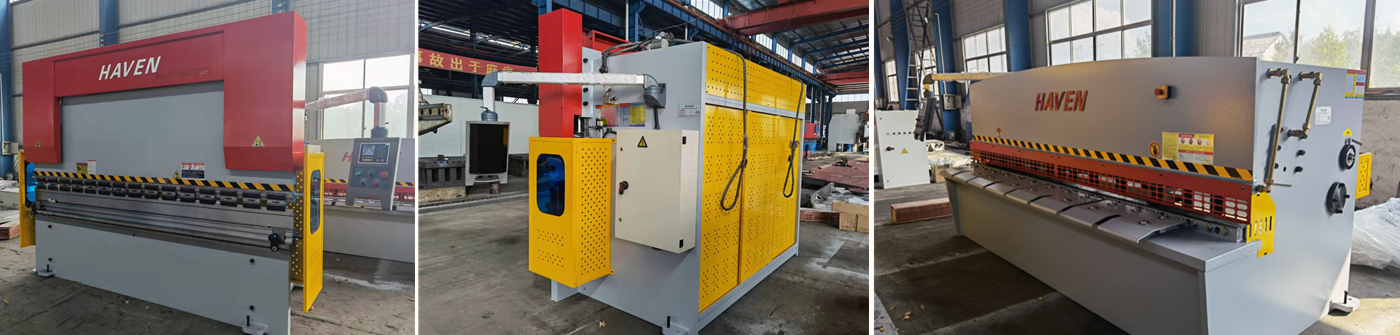

Here we also attached some machine specification and details for you,please refer.
(1)Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity;
(2)Hydraulic top-drive, steadiness and reliability
(3)Mechanical stop, steel torsion bar to maintain synchronization, high precision;
(4)Motorized-adjusting back-gauge and ram’s stroke, fine adjusting by hand wheel, numerical display;
(5)Deflection compensation unit installed on the top die, manual crowed bottom die holder is adopted for the machines that not less than 300tons;
(6)Travel limit protection.
(7)Remote pedal control device
(8)Full machine guarding with safety interlocker.
(9)Duplex linked press brake is available as per client’s demand.
(10) Main Electric Components Are From SIEMENS brand or SCHNEIDER brand
(11) Hydraulic Pump is from SUNNY brand, USA
(12) Hydraulic Seal Rings Are From VALQUA brand, Japan
(13) Hydraulic valve is from REXROTH brand, German
(14) Motorized Back Gauge, with ball screw.
(15) Liner guide way on the back gauge beam
(16) Electrical Control Box
(17) Pedal Control Switch
(18) Standard Punch and Die
(19) Back and side safety curtain
(20) Foundation Bolts
(21) English Manual
(22) E21 NC control system is from China top one brand ESTUN
Estun NC-E21 programmable digital control stores up to 40 unique programs with 25 automatic progressive bending Steps in each individual program, assuring production accuracy & repeatability every time.
Estun NC-E21 programmable hardened ballscrew backgauge system, simply enter the desired measurement into the controller and press go, the backgauge then will move quickly into the position you have requested. The superior hardened ballscrew system eliminates any backlash that leadscrew type machines produce.
(23)Front photo-electric protection and CNC system is available as per customer’s requirement at extra cost
Model No. | Normal Pressure (KN) | Length Of table (mm)
| Distance Between Housing (mm) | Throat Depth (mm) | Stroke (mm) | Open Height (mm) | Motor Power (Kw) |
WC67Y-63/2500 | 630 | 2500 | 2000 | 320 | 120 | 390 | 5.5 |
WC67Y-63/3200 | 630 | 3200 | 2600 | 320 | 120 | 390 | 5.5 |
WC67Y-80/2500 | 800 | 2500 | 2000 | 320 | 120 | 390 | 5.5 |
WC67Y-80/3200 | 800 | 3200 | 2600 | 320 | 120 | 390 | 7.5 |
WC67Y-100/3200 | 1000 | 3200 | 2600 | 320 | 120 | 390 | 7.5 |
WC67Y-125/2500 | 1250 | 2500 | 2000 | 320 | 120 | 390 | 7.5 |
WC67Y-125/3200 | 1250 | 3200 | 2600 | 320 | 120 | 390 | 7.5 |
WC67Y-125/4000 | 1250 | 4000 | 3200 | 400 | 180 | 460 | 11 |
WC67Y-160/3200 | 1600 | 3200 | 2700 | 400 | 180 | 460 | 11 |
WC67Y-160/4000 | 1600 | 4000 | 3200 | 400 | 180 | 460 | 11 |
WC67Y-200/2500 | 2000 | 2500 | 1600 | 400 | 180 | 460 | 11 |
WC67Y-200/3200 | 2000 | 3200 | 2600 | 400 | 180 | 460 | 11 |
WC67Y-200/4000 | 2000 | 4000 | 3200 | 400 | 180 | 480 | 11 |
WC67Y-200/6000 | 2000 | 6000 | 4800 | 400 | 180 | 480 | 11 |
WC67Y-250/3200 | 2500 | 3200 | 2600 | 400 | 200 | 480 | 15 |
WC67Y-250/4000 | 2500 | 4000 | 3200 | 400 | 200 | 560 | 15 |
WC67Y-250/5000 | 2500 | 5000 | 4000 | 400 | 250 | 560 | 15 |
WC67Y-300/3200 | 3000 | 3200 | 2600 | 400 | 250 | 560 | 15 |
WC67Y-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 560 | 22 |
WC67Y-300/5000 | 3000 | 5000 | 4000 | 400 | 250 | 560 | 22 |
WC67Y-300/6000 | 3000 | 6000 | 4800 | 400 | 250 | 630 | 22 |
WC67Y-350/4000 | 3500 | 4000 | 3200 | 400 | 250 | 560 | 22 |
WC67Y-400/3200 | 4000 | 3200 | 2600 | 400 | 250 | 630 | 22 |
Follow HAVEN to get the quote.
